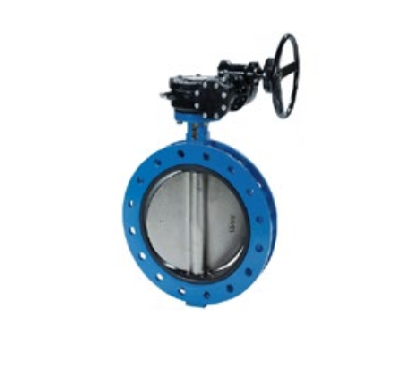

Body: Ductile iron EN-GJS-400-15 (GGG40)
Disc: Ductile iron EN-GJS-400-15 (GGG40) nickel plated or Stainless steel 316
Seat: Heat EPDM
Connection: Flanged ASA 150
Max working pressure: 16 bar
Maximum Working temperature: +130°C ( +150 °C peak)
Minimum Working temperature: -15°C ( -30 °C peak)
Operation: Gearbox with handwheel and ISO top flange for electric actuator
connection
